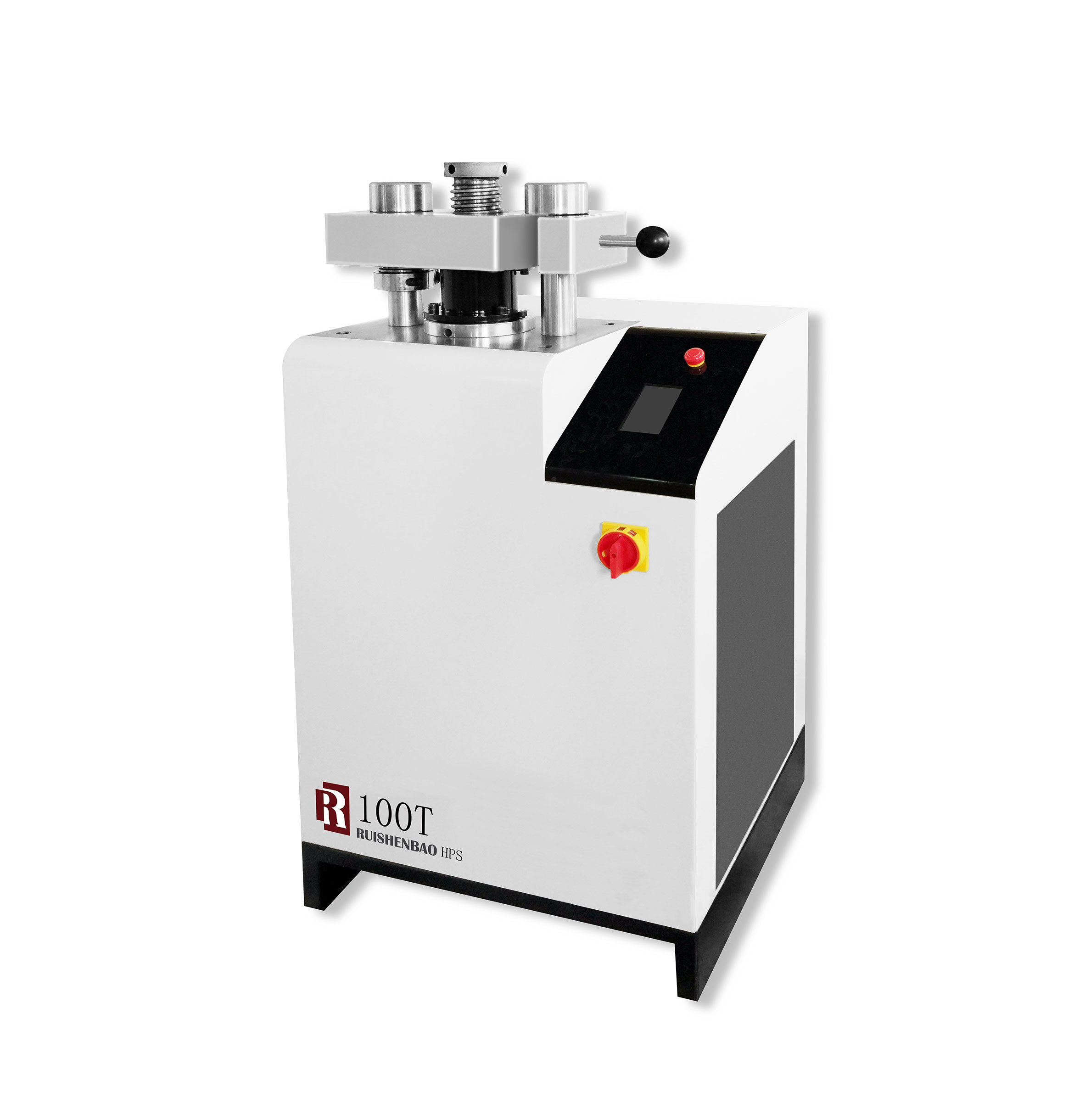

Fully Automatic High Pressure Pelletizing Press:HPS
  • HPS型自动液压压片机--100T
  • HPS型自动液压压片机-120T
  • HPS型自动液压压片机--100T
  • HPS型自动液压压片机-120T

Overview:

The HPS series is an entirely new type of automatic pelletizing press for high pressure input developed by RUISHENBAO® Analytical (Shanghai) Co., Ltd to prepare high-quality pellets, which offers the full benefits of program-controlled sample preparation for x-ray fluorescence analysis. At present, the HPS pellet press is the only and first high pressure(>60ton) press of sample preparation for XRF in market. There are two types for your requirement of which the operating pressure is individually up to 100ton and 120ton. A swing-out cross-head makes filling and cleaning of the die quick, simple and safe. A number of pressing variables can be selected, depending on the press tool employed. Precision press tools with a range of diameters and materials permit free pressing. Pelletizing parameters such as total pressing force, incremental increase and decrease of pressure as well as pressure holding time can be easily operated through a touch-screen LCD display. The pressure increase and decrease during pelletizing are controlled so that inner stresses within the sample are reduced. This allows the production of perfect pellets even with complicated sample material. The pelletizing process is controlled by the PLC program. This leads to substantial improvement in reproducibility of sample preparation and consequently more precise analysis results. The HPS pellet press is a high-quality, high pressure, precision and new engineering product with compact dimensions. It produces high-quality pressed pellets with mirrorlike surface necessary for optimal XRF results. It is ideally suited for laboratory requirements.

Features:

Only and first high pressure pellet press for sample preparation for XRF in market with operating pressure>60 tons, two types for your requirement: 100 tons and 120 tons individually;

One-touch operation, easy controlling, pelletizing process is controlled directly, reliably and continuously by the PLC program;

Press tools with a range of diameters and materials;

Touch-screen LCD user interfaced; all operations and programming are through touch-screen entries;

A swing-out cross-head makes filling and cleaning of the die quick, simple and safe;

Produce high-quality pressed pellets with mirrorlike surface;

Best quality/price ratio in the market.

Fields of application:

Geology: ore, dust, slag;

Kiln: cement, limestone, dolomite, glass, quartz, clay;

Metallurgy: iron ore, coal, sinter, pellet, blast furnace and electric furnace slags;

Nonferrous: alumina, bauxite, copper ore;

Chemicals: catalyst, polymer;

Soil: rock, various soils;

Research Institutes: manufacture of reference materials.

For more information, please contact us by email: info@ruishenbao.com

Technical data:



Max. pressure of type

100T

120T

Operating temperature

0-40℃

Programmable controller

PLC

Hydraulic oil

Antiwear hydraulic oil 46#

Voltage

AC 380V±10%,50 Hz,10A,3-phase five-wire

Power draw

1.5kW

Pressing in shells

Standard diameter 40mm and optional other sizes

Dimensions(L×W×H)

610×500×920mm

Net weight

410kg
