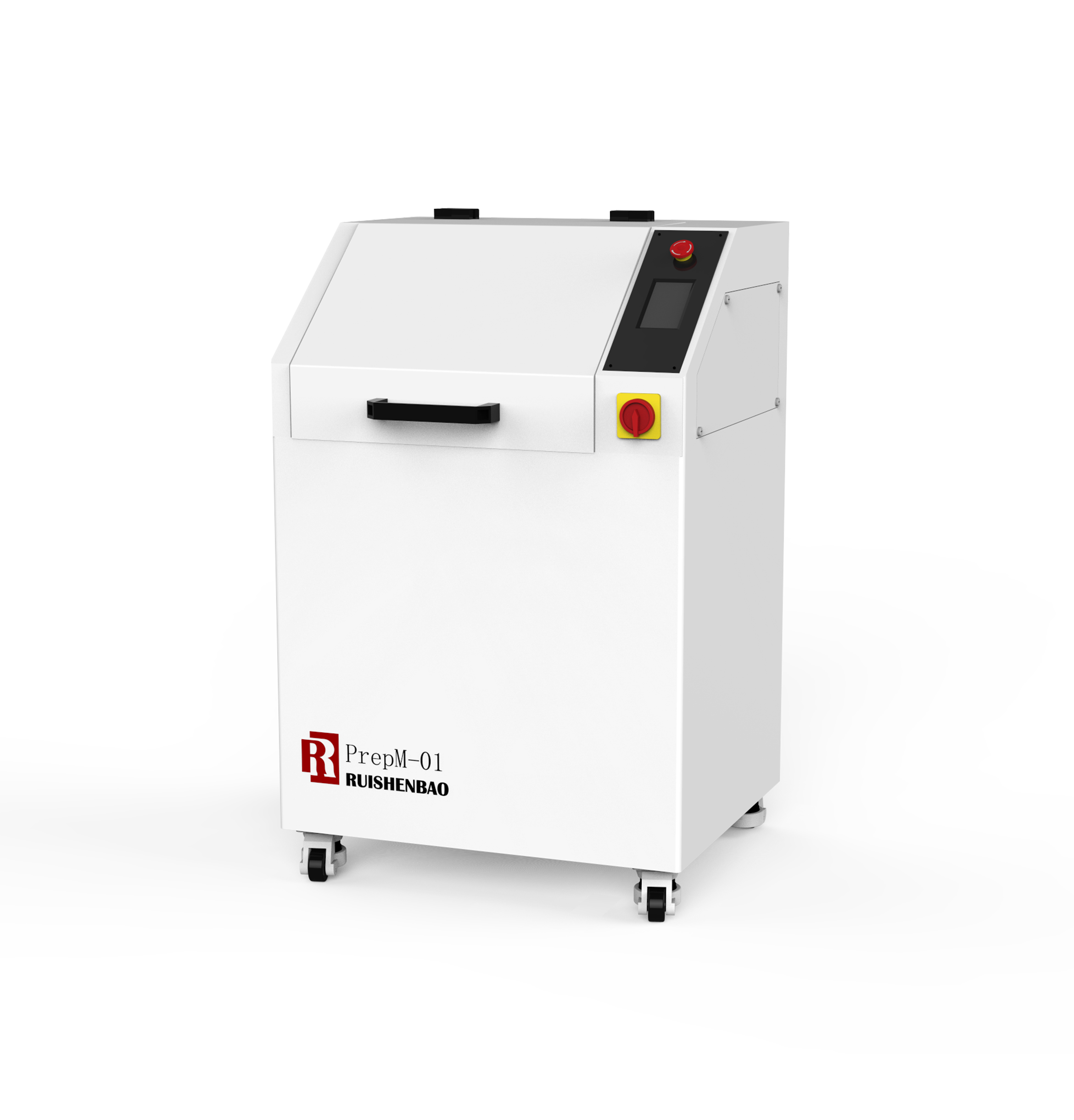

Vibratory Disc Mill: PrepM-01
  • PrepM-01系列盘式振动研磨机
  • 研磨机模具1
  • 研磨机模具2
  • 研磨机模具3
  • 研磨机模具4
  • 研磨机模具5
  • PrepM-01系列盘式振动研磨机
  • 研磨机模具1
  • 研磨机模具2
  • 研磨机模具3
  • 研磨机模具4
  • 研磨机模具5

Overview:

The PrepM-01 vibratory disc mill series offers many practical advantages in all areas in which hard, brittle and fibrous material must be ground extremely quick down to fineness for spectral or X-ray fluorescence analysis. In the vibratory disc mill, the grinding is performed by horizontal circular oscillations of the grinding set on a vibrating plate. The grinding set consisting of ring and puck comminutes the grinding sample with extremely high pressure, impact forces and friction. The instrument runs steadily and smoothly, even with heavy grinding sets, at maximum speed thanks to the stabilized plane designed. It has been proven to be ideal for use in the building materials sector (cement), in geology, mineralogy, metallurgy and in power plants. Due to the high end fineness and speed PrepM-01 vibratory disc mill is the perfect mill when it comes to preparing samples for spectral analysis. The circular vibrations are produced by a frequency controlled motor or a constant speed motor according to different models. It ensures that the motor output is precisely matched to the grinding material and grinding set - which optimises the energy consumption.

Features:

Reproducible results due to stabilized plane designed;

Extremely short grinding time;

Vibrating plate comes equipped with spring suspension system: unique combination of vertical support, eight direction side pull and eccentric mechanism result in perfect horizontal circular oscillations of the grinding set;

No sample loss thanks to optimum o-ring seal;

The various and adaptable material of grinding tools for free grinding;

Automatic identification of grinding tool replacement without setting the parameters;

Quick-action grinding set clamping device for convenient and safe tightening;

Noise-insulated grinding chamber and especially safe hood locking;

Grinding set is placed on a guide rail and easily moved to the final position.

Fields of application:

Geology: ore, dust, slag;

Kiln: cement, limestone, dolomite, glass, quartz, clay;

Iron & steel: iron ore, coal, converter slag, blast furnace slag, electric furnace slag;

Nonferrous: alumina, bauxite, copper ore;

Chemicals: catalyst, polymer;

Soil: rock, various soils;

Research Institutes: manufacture of reference materials.

For more information, please contact us by email: info@ruishenbao.com

Technical data:



Model

PrepM-01A

PrepM-01B

PrepM-01C

PrepM-01D

Operation mode

Rotate speed

Single speed

1400rpm

Single speed

960rpm

Double speeds

960rpm/1400rpm

Frequency control selections

750-1500rpm

Power draw

1.5kW

1.1kW

0.85/1.1kW

1.5kW

Material feed size

<10mm

Final fineness

≤75μm

Material of grinding tools

Chromium steel/ tungsten carbide

Grinding jar sizes

50ml/100ml/150ml/200ml/300ml/400ml for optional

Voltage

AC 380V±10%, 50 Hz,10A, 3-phase five-wire

Feed quantity

30%-100% of specified useable volumes

Dimensions(L×W×H)

650×600×960mm

Net weight

~220kg
