Integrated Water-cooling Chiller

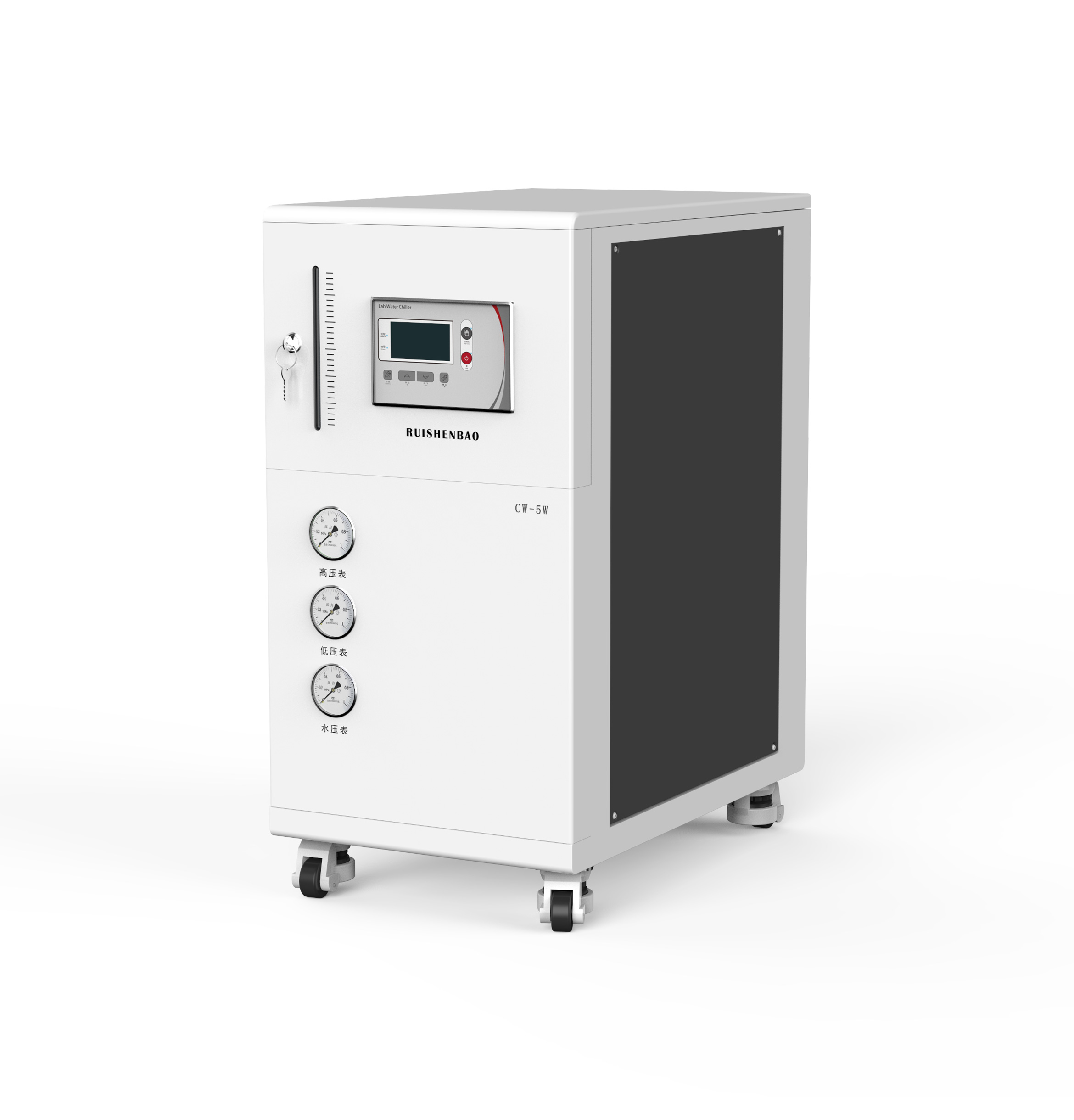

  • CW-5W

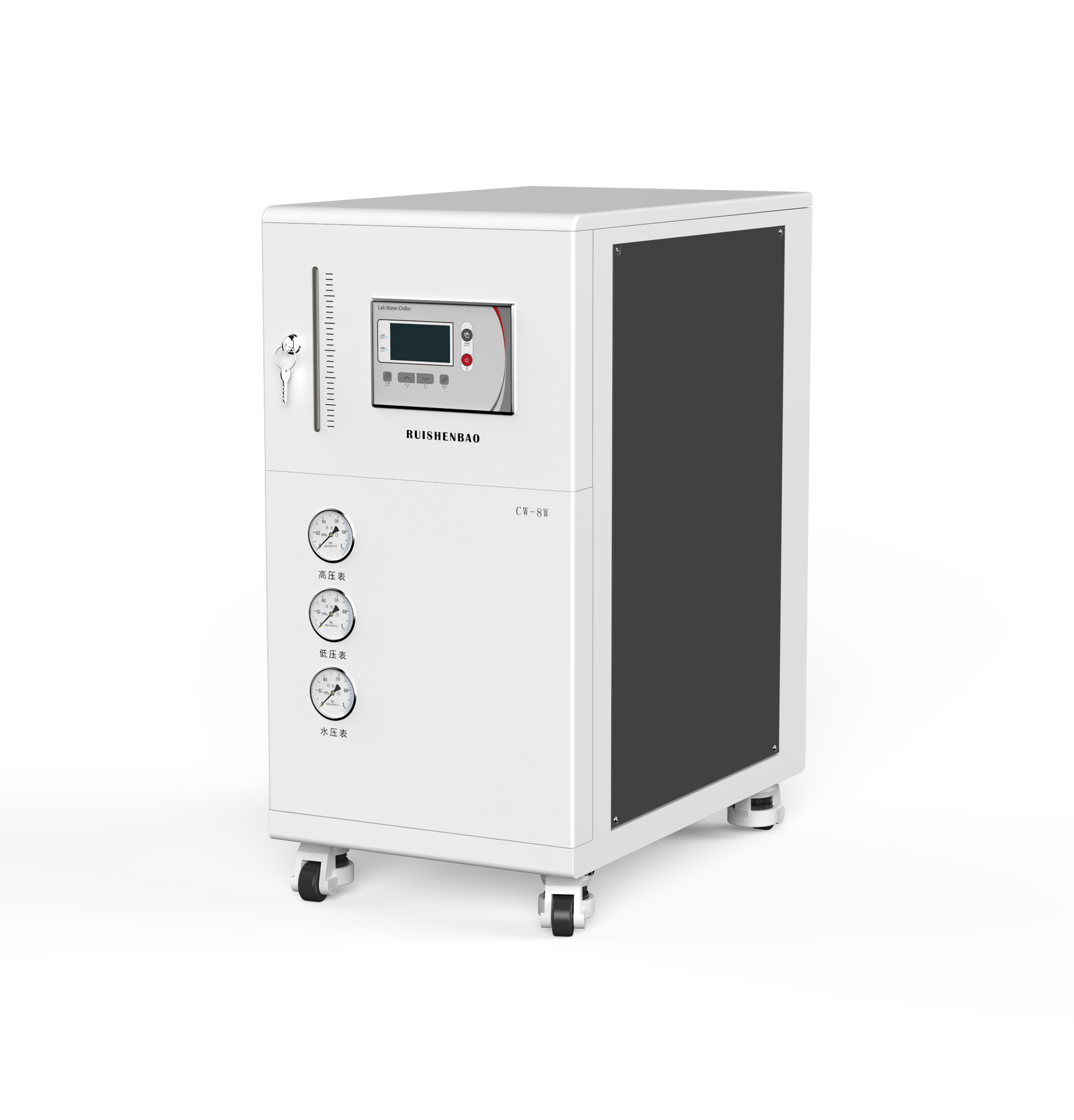

  • CW-8W

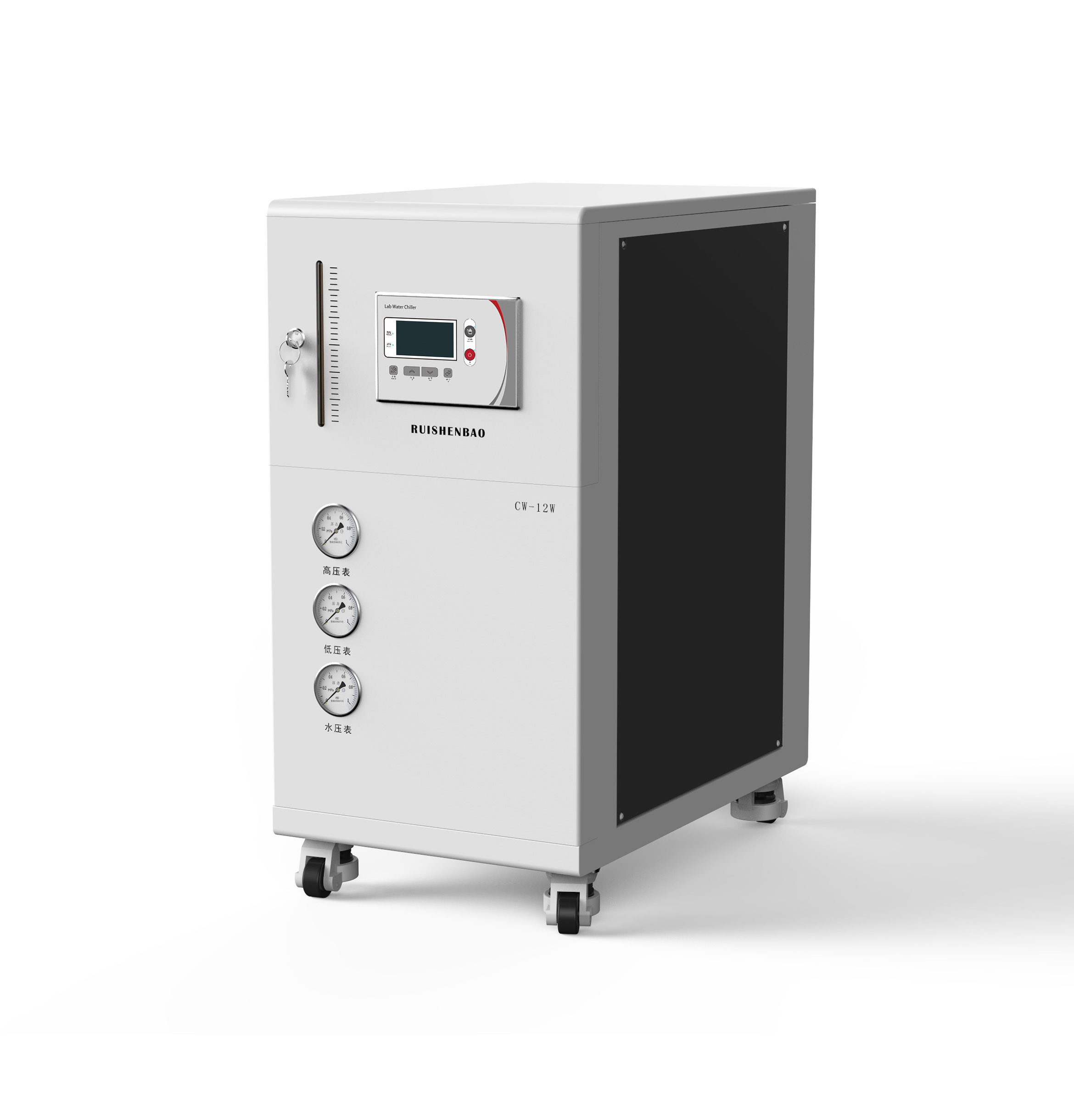

  • CW-12W

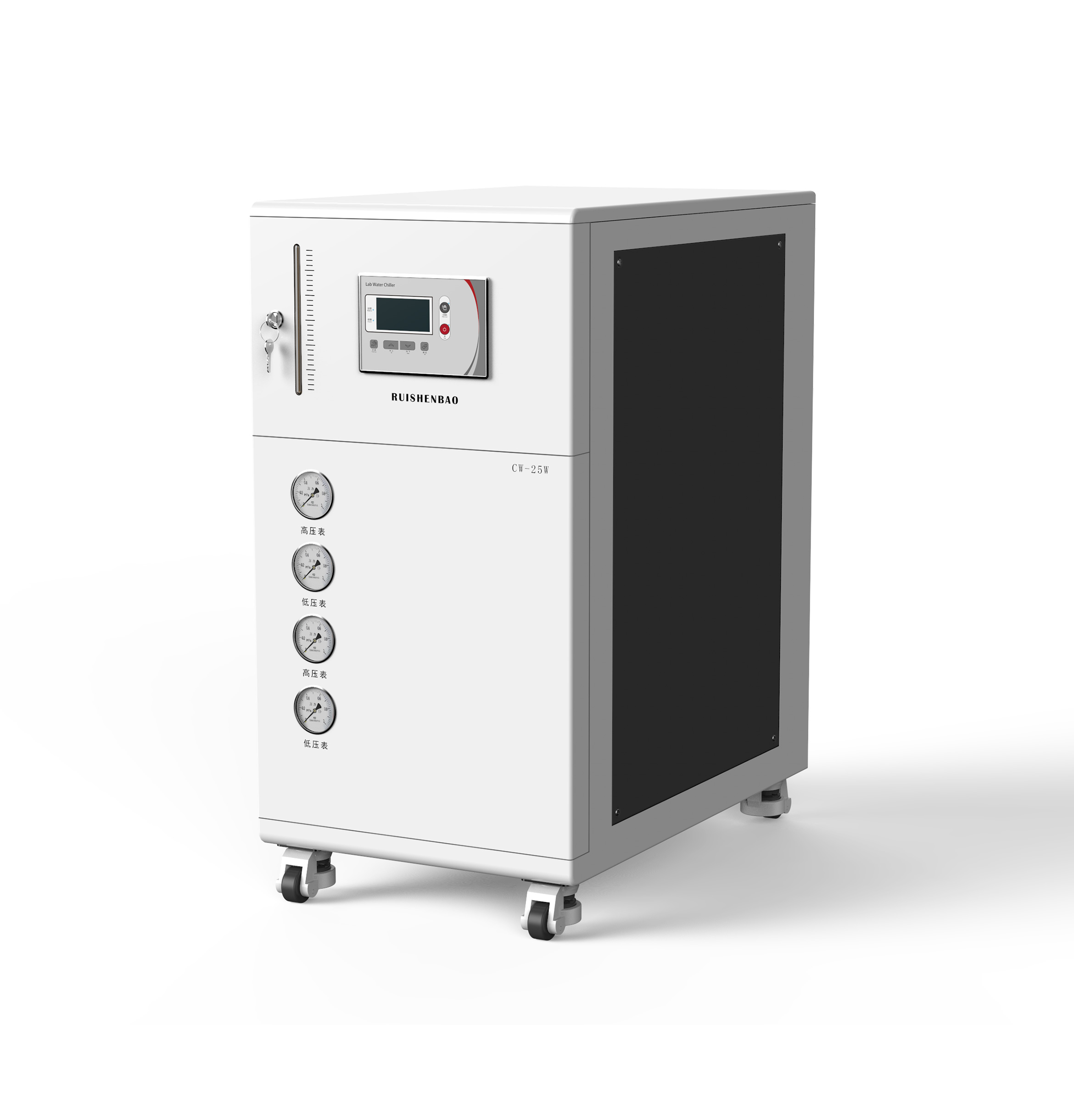

  • CW-25W
  • CW-5W
  • CW-8W
  • CW-12W
  • CW-25W

Overview:

CW series high-precision circulating water chiller, developed by Ruishenbao Analytical (Shanghai) Co., Ltd., is an auxiliary cooling device for analysis equipment in different models of divided chillers, integrated chillers, air-cooling chillers and water-cooling chillers. Among these chillers, W series integrated high-precision water-cooling chiller is an ideal choice for laboratories with clean water sources and outlets. Equipped with imported rotor compressors, the device can rapidly transfer heat via water. In comparison with chillers of S series and I series, W series chiller delivers a faster cooling rate.

Features:

 Low energy consumption: imported rotor compressor, excellent performance, energy conservation and environmental protection;

 Easy to monitor: small-window LCD screen directly shows equipment operation and failure status;

 Reliable stability: Imported bearing fittings, coaxial structure, high efficiency and durability, easy maintenance;

 Excellent heat transferring: the condenser and evaporator with highly efficient temperature transfer material to ensure high performance of heat transfer;

 High efficiency: the independent refrigeration system, full use of water media, higher cooling efficiency;;

 Safety: Compressor overload protection, high and low pressure protection, delay protection, anti-freeze protection and other multiple protection devices.

Technical data:

Item

Integrated Water-cooling Type

Model

CW-5W

CW-8W

CW-12W

CW-25W

Cooling Capacity

5kw*

8kw*

12kw*

25kw*

Power Supply

AC 380V,25A,
50Hz
3- phase

AC 380V,32A,
50Hz  3- phase

AC380V,50Hz

Temperature Range

5-35℃

Control Accuracy

±0.1℃/±0.5℃

±2℃/±1℃

Water Flow

3-25L/min

10-110 L/min

Hydraulic Pressure

0.1-0.45MPa

0.1~0.55MPa

Refrigerant

R22

Power

2.4kw

3.8kw

6kw

11kw

Tank volume (mm)

35L

70L

140L

Indoor unit (mm)

850×500×1160

900×560×1200

1300×650×1500

Note * : The standard cooling capacity is the cooling power at the outdoor ambient temperature of 20℃ and the water supply temperature of 20℃



Application:

At present, RUISHENBAO water chiller is widely used in laboratories in various industries such as medicine, chemicals, chemical fiber, food, electronics, batteries, glass, rubber, cigarettes, textiles, scientific research, aviation and military engineering. It can be the auxiliary device to a number of equipment, Such as X-ray fluorescence spectrometer (XRF), X-ray diffraction spectrometer (XRD), X-ray photoelectron spectrometer (XPS), atomic absorption spectrometer (AAS), plasma spectrometer (ICP), plasma mass spectrometer (ICP-MS), electron probe Analyzer (EPMA), SEM, TEM, NMR, vacuum die plating machine, material fatigue tester, ion beam epitaxial device(IBE), molecular beam epitaxial device (MBE), MOCVD, high-power laser, plasma etching machine, high-power vacuum brazing furnace.

For more information and professional support, please call 4008-718-622 or email to info@ruishenbao.com.
